APX Sheet Labels

APX Sheet Label (sensormatic)

The premier choice in label performance and merchandise protection.
The Advanced Performance Xtreme (APX) Sheet Label delivers top-of-the-line performance and superior merchandise protection using proven Sensormatic technology. The APX Label provides exceptional range, sensitivity, tamperresistance,detection and consistent deactivation at the point-of-sale (POS) with virtually no nuisance alarms. This robust and stable AM EAS label operates efficiently after exposure to environmental stresses, including shipping and handling. Available for in-store hand application, this label can also be applied to merchandise at the point of manufacturing so retailers can receive floor-ready merchandise with consistent label placement-expediting receiving and selling floor fulfillment.
Retailer Values
// Utilizes proven Sensormatic AM technology and manufacturing process to provide reliable detection performance
// Quality materials and precision manufacturing help deliver consistent deactivation at the POS
// Small label footprint minimizes impact on brand promotion and important product information
// Robust construction provides optimal merchandise protection
// Works well on liquids, foils and in metal shopping carts
// Reactivatable for unlimited reuse
Product Codes

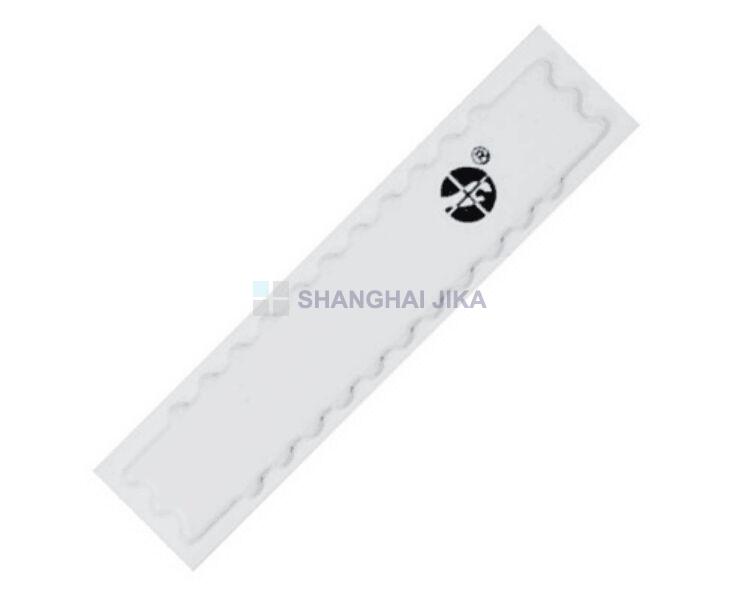

ZLAPXS1: White

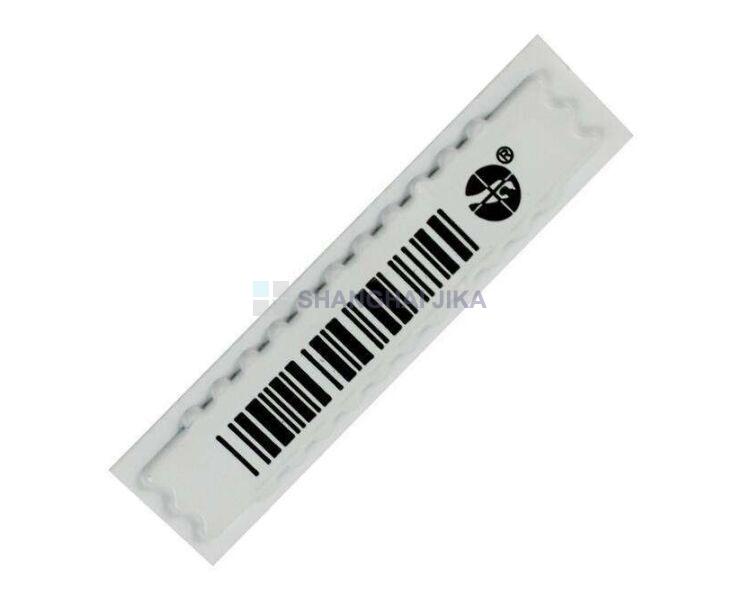

ZLAPXS2: Mock Barcode
ZLAPXS5: Black
Technology
AM
Product Compatibility
Sensormatic AM detection and deactivation devices.
Environmental Constraints
Temperature
Maximum storage temperature not to exceed 50°C (122°F) for 96 hours at 80% RH.
Humidity
Unaffected by 80% humidity at 50°C (122°F), up to 96 hours.
Shelf Life
Two years from date of manufacture when labels are stored between 15°C-32°C (60°F-90°F), 30-80% RH.
Mode of Application
Hand
Materials of Construction
Plastic Substrate
Polystyrene/Polyethylene 0.254mm (0.010in) thickness
Magnetic Acoustic Resonator
Proprietary resonant magnetic material Amorphous alloy based on iron, containing nickel, cobalt, boron and silicon
Laminate
Low Density Polyethylene/Polyester 0.101mm (0.004in)
Bias
Proprietary semi-hard magnetic material containing iron and nickel
Adhesive
Double-coated, rubber-based adhesive:
// 2.4 mil thick each side
// Minimum peel strength of 2.27kg/5lbs/in.
Release Liner
Double-sided, silicon-coated 80lb. bleached Kraft liner 0.114mm (0.0045in) thick.
Dimensions
Color ............White, Mock Barcode, Black
Length........................45.21mm ± 0.5mm (1.78in ± 0.020in)
Width .........................10.67mm ± 0.5mm (0.420in ± 0.020in)
Label Thickness
(excluding liner)......................... Maximum 1.89mm (0.074in)
(including liner).......................... Maximum 2.00mm (0.079in)
Labels Per Sheet................................108

This product and information belong to the sensormatic company, only to facilitate customers to understand their needs.
