APX Roll Labels

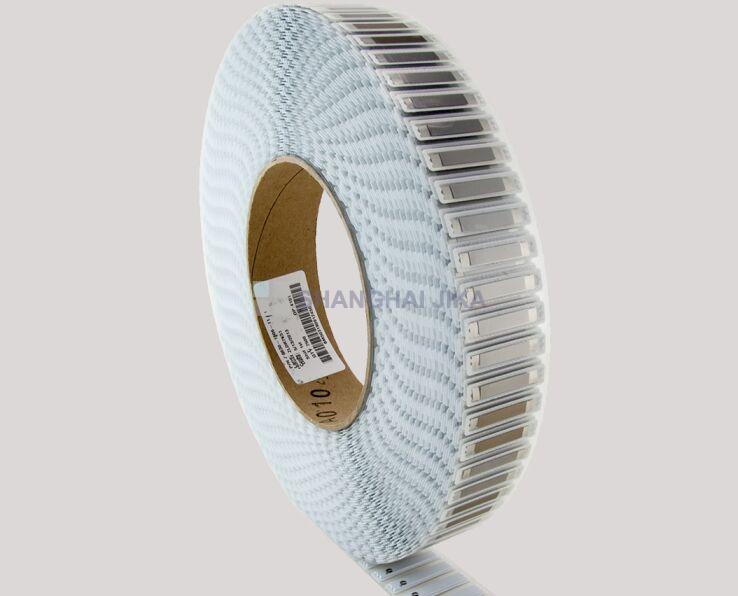

APX Roll Label

The premier choice in label performance and merchandise protection
The Advanced Performance Xtreme (APX) Roll Label delivers top-of-the-line performance and superior merchandise protection using proven Sensormatic technology.
The APX Label provides exceptional range, sensitivity, tamper resistance, detection and consistent deactivation at the point-of-sale (POS) with virtually no nuisance alarms.
This robust and stable AM EAS label operates efficiently after exposure toenvironmental stressors, including shipping and handling.
This label design is for automatic application to merchandise at the point of manufacturing so retailers can receive floor-ready merchandise with consistent label placement, expediting receiving and selling floor fulfillment.
Retailer Values
// Utilizes proven Sensormatic AM technology and manufacturing process to provide reliable detection performance
// Applied at the source allows merchandise to arrive tagged and shelf ready, moving faster from receiving to sales floor
// Better label adhesion ensures durability and longevity on merchandise during shipping, storage and handling
// Permits open merchandising while still combatting theft
// Quality materials and precision manufacturing help deliver consistent deactivation at the POS
// Small label footprint minimizes impact on brand promotion and important product information
// Works well when placed on liquids, foils and in metal shopping carts
// Reactivatable for unlimited reuse
Product Codes
Small Roll:
ZLAPX1K71: White
ZLAPX1K75: Black
Large Roll:
ZLAPX7K51: White
ZLAPX7K55: Black

Technology
AM

Product Compatibility
Sensormatic AM detection and deactivation devices.
Environmental Constraints
Temperature
Maximum storage temperature not to exceed 50°C (122° F) for 96 hours at 80% RH.
Humidity
Unaffected by 80% humidity at 50°C (122°F), up to 96 hours.
Shelf Life
Small Roll:
Two years from date of manufacture when labels are stored between 15°C -32°C (60°F-90°F), 30-80% RH.
Large Roll:
One year from date of manufacture when labels are stored between 15°C -32°C (60°F-90°F), 30-80% RH.
Mode of Application
Small Roll:
Hand or Tabletop
Large Roll:
Automatic
Materials of Construction
Plastic Substrate
Polystyrene/Polyethylene 0.254mm (0.010in) thick
Magnetic Acoustic Resonator
Proprietary resonant magnetic material. Amorphous alloy based on iron, containing nickel, cobalt, boron and silicon
Materials of Construction (cont’d)
Laminate
Low Density Polyethylene/Polyester
Polyethylene 0.101mm (0.0040in)
Bias
Proprietary semi-hard magnetic material containing iron and nickel
Adhesive
Double-coated, rubber-based adhesive:
// 2.4mil thick per side
// Minimum peel strength of 2.27kg/5lbs
Release Liner
PET (Polyethylene) film silicone treated 0.0508mm + - 10% thick
Dimensions
Color..............................................White, Black
Length...........................................44.6mm ± 0.15mm (1.76in ± 0.006in)
Width............................................10.16mm ± 0.15mm (0.40in ± 0.006in)
Label Thickness
(excluding liner)...............................Maximum 1.73mm (0.068in)
(including liner)................................Maximum 1.78mm (0.070in)
Liner Width....................................48.64mm ± 0.75mm (1.915in ± 0.030in)
Label Repeat.................................14.73mm ± 0.75mm (0.580in ± 0.030in)
Label to Liner Spacing..................2.02mm ± 0.75mm Large ± 2.0mm Small (0.080in ± 0.030in)
